Model evaluation

Author

Prof. Maria Tackett

Published

Feb 04, 2025

Announcements

Lab 02 due Thursday at 11:59pm
HW 02 released later today
Click here to learn more about the Academic Resource Center
Statistics experience due Tuesday, April 15

Office hours poll

🔗 https://forms.office.com/r/QTxJvhGSFF

Topics

Recap of MLR and predictor types
Interaction terms
ANOVA and sum of squares
\(R^2\) and RMSE

Computational setup

# load packages
library(tidyverse)
library(tidymodels)
library(patchwork)
library(knitr)
library(kableExtra)
library(colorblindr)

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_bw())

Recap: Multiple linear regression

Data: Palmer penguins

The penguins data set contains data for penguins found on three islands in the Palmer Archipelago, Antarctica. Data were collected and made available by Dr. Kristen Gorman and the Palmer Station, Antarctica LTER, a member of the Long Term Ecological Research Network. These data can be found in the palmerpenguins R package.

. . .

# A tibble: 342 × 4
   body_mass_g flipper_length_mm bill_length_mm species
         <int>             <int>          <dbl> <fct>
 1        3750               181           39.1 Adelie
 2        3800               186           39.5 Adelie
 3        3250               195           40.3 Adelie
 4        3450               193           36.7 Adelie
 5        3650               190           39.3 Adelie
 6        3625               181           38.9 Adelie
 7        4675               195           39.2 Adelie
 8        3475               193           34.1 Adelie
 9        4250               190           42   Adelie
10        3300               186           37.8 Adelie
# ℹ 332 more rows

Variables

Predictors:

bill_length_mm: Bill length in millimeters
flipper_length_mm: Flipper length in millimeters
species: Adelie, Gentoo, or Chinstrap species

Response: body_mass_g: Body mass in grams

The goal of this analysis is to use the bill length, flipper length, and species to predict body mass.

Response vs. predictors

Model fit

penguin_fit <- lm(body_mass_g ~ flipper_length_mm + species +
                bill_length_mm, data = penguins)

tidy(penguin_fit) |>
  kable(digits = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	-3904.387	529.257	-7.377	0.000
flipper_length_mm	27.429	3.176	8.638	0.000
speciesChinstrap	-748.562	81.534	-9.181	0.000
speciesGentoo	90.435	88.647	1.020	0.308
bill_length_mm	61.736	7.126	8.664	0.000

Interpreting \(\hat{\beta}_j\)

The estimated coefficient \(\hat{\beta}_j\) is the expected change in the mean of \(Y\) when \(X_j\) increases by one unit, holding the values of all other predictor variables constant.

. . .

Example: The estimated coefficient for flipper_length_mm is 27.429. This means for each additional millimeter in a penguin’s flipper length, its body mass is expected to be greater by 27.429 grams, on average, holding species and bill length constant.

Indicator variables

term	estimate	std.error	statistic	p.value	conf.low	conf.high
(Intercept)	-3904.387	529.257	-7.377	0.000	-4945.450	-2863.324
flipper_length_mm	27.429	3.176	8.638	0.000	21.182	33.675
speciesChinstrap	-748.562	81.534	-9.181	0.000	-908.943	-588.182
speciesGentoo	90.435	88.647	1.020	0.308	-83.937	264.807
bill_length_mm	61.736	7.126	8.664	0.000	47.720	75.753

Interpret the coefficient of Gentoo in the context of the data.

Centering

Centering a quantitative predictor means shifting every value by some constant \(C\)

\[ X_{cent} = X - C \]

One common type of centering is mean-centering, in which every value of a predictor is shifted by its mean
Only quantitative predictors are centered
Center all quantitative predictors in the model for ease of interpretation

How does centering change the model and/or interpretations?

Standardizing

Standardizing a quantitative predictor mean shifting every value by the mean and dividing by the standard deviation of that variable

\[ X_{std} = \frac{X - \bar{X}}{S_X} \]

Only quantitative predictors are standardized
Standardize all quantitative predictors in the model for ease of interpretation

How does standardizing change the model and/or interpretations?

Interaction terms

Sometimes the relationship between a predictor variable and the response depends on the value of another predictor variable.
This is an interaction effect.
To account for this, we can include interaction terms in the model.

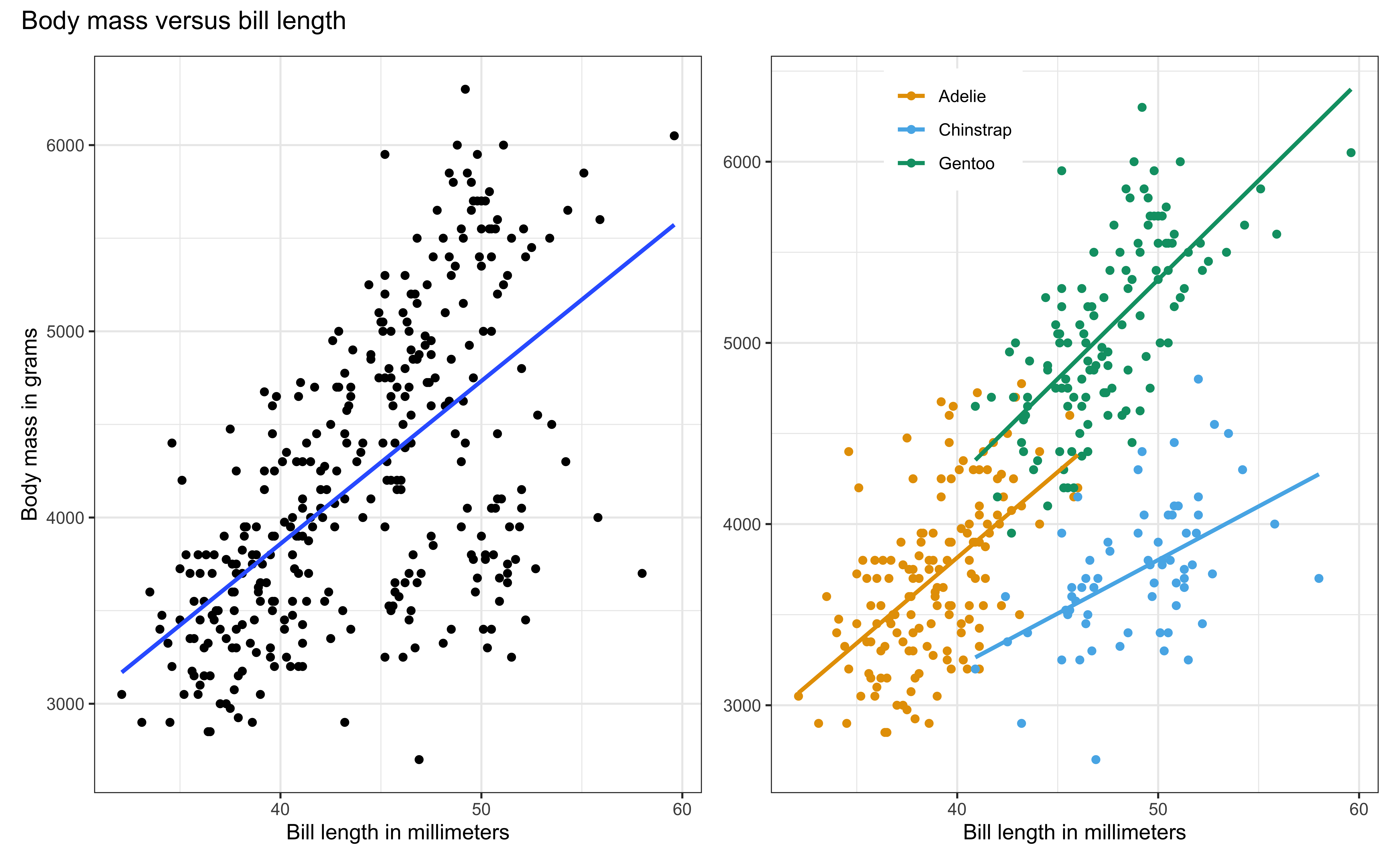

Bill length versus species

If the lines are not parallel, there is indication of a potential interaction effect, i.e., the slope of bill length may differ based on the species.

Interaction term in model

penguin_int_fit <- lm(body_mass_g ~ flipper_length_mm + species + bill_length_mm + species * bill_length_mm,
      data = penguins)

term	estimate	std.error	statistic	p.value
(Intercept)	-4297.905	645.054	-6.663	0.000
flipper_length_mm	27.263	3.175	8.586	0.000
speciesChinstrap	1146.287	726.217	1.578	0.115
speciesGentoo	54.716	619.934	0.088	0.930
bill_length_mm	72.692	10.642	6.831	0.000
speciesChinstrap:bill_length_mm	-41.035	16.104	-2.548	0.011
speciesGentoo:bill_length_mm	-1.163	14.436	-0.081	0.936

Interaction terms in the model

term	estimate	std.error	statistic	p.value
(Intercept)	-4297.905	645.054	-6.663	0.000
flipper_length_mm	27.263	3.175	8.586	0.000
speciesChinstrap	1146.287	726.217	1.578	0.115
speciesGentoo	54.716	619.934	0.088	0.930
bill_length_mm	72.692	10.642	6.831	0.000
speciesChinstrap:bill_length_mm	-41.035	16.104	-2.548	0.011
speciesGentoo:bill_length_mm	-1.163	14.436	-0.081	0.936

Write the model equation for penguins in the Adelie species.
Write the model equation for penguins in the Chinstrap species.

Interpreting interaction terms

What the interaction means: The effect of bill length on the body mass is 41.035 less when the penguin is from the Chinstrap species compared to the effect for the Adelie species, holding all else constant.
Interpreting bill_length_mm for Chinstrap: For each additional millimeter in bill length, we expect the body mass of Chinstrap penguins to increase by 31.657 grams (72.692 - 41.035), holding all else constant.

Summary

In general, how do

indicators for categorical predictors impact the model equation?
interaction terms impact the model equation?

Model evaluation

Data: Restaurant tips

Which variables help us predict the amount customers tip at a restaurant? To answer this question, we will use data collected in 2011 by a student at St. Olaf who worked at a local restaurant.

# A tibble: 8 × 4
    Tip Party Meal   Age
  <dbl> <dbl> <chr>  <chr>
1  2.99     1 Dinner Yadult
2  2        1 Dinner Yadult
3  5        1 Dinner SenCit
4  4        3 Dinner Middle
5 10.3      2 Dinner SenCit
6  4.85     2 Dinner Middle
7  5        4 Dinner Yadult
8  4        3 Dinner Middle

Dahlquist, Samantha, and Jin Dong. 2011. “The Effects of Credit Cards on Tipping.” Project for Statistics 212-Statistics for the Sciences, St. Olaf College

Variables

Predictors:

Party: Number of people in the party
Meal: Time of day (Lunch, Dinner, Late Night)
Age: Age category of person paying the bill (Yadult, Middle, SenCit)

Response: Tip: Amount of tip in US dollars

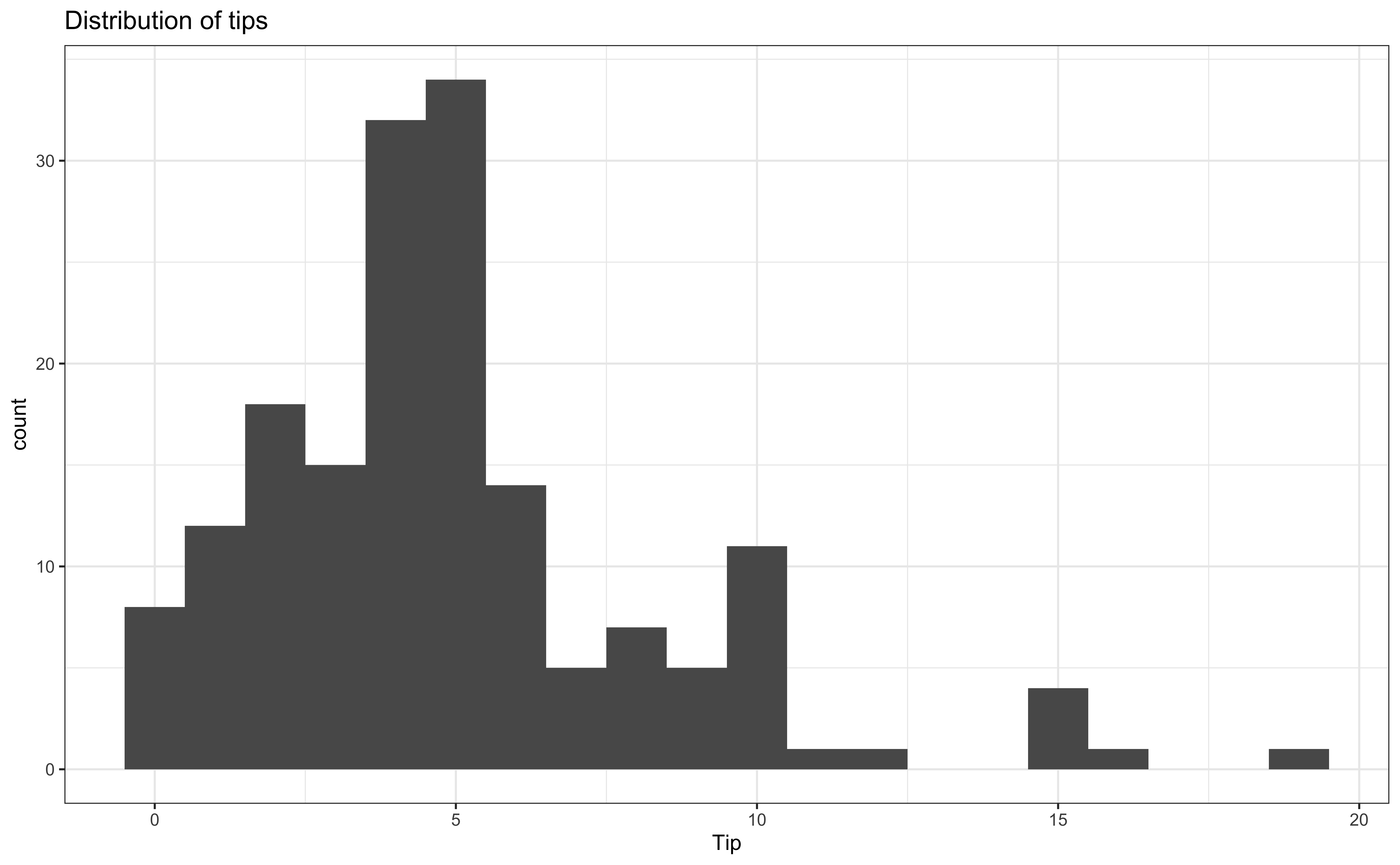

Response: `Tip`

Min	Q1	Median	Q3	Max	Mean	SD
0	3	4.5	6	19.46	4.98	3.37

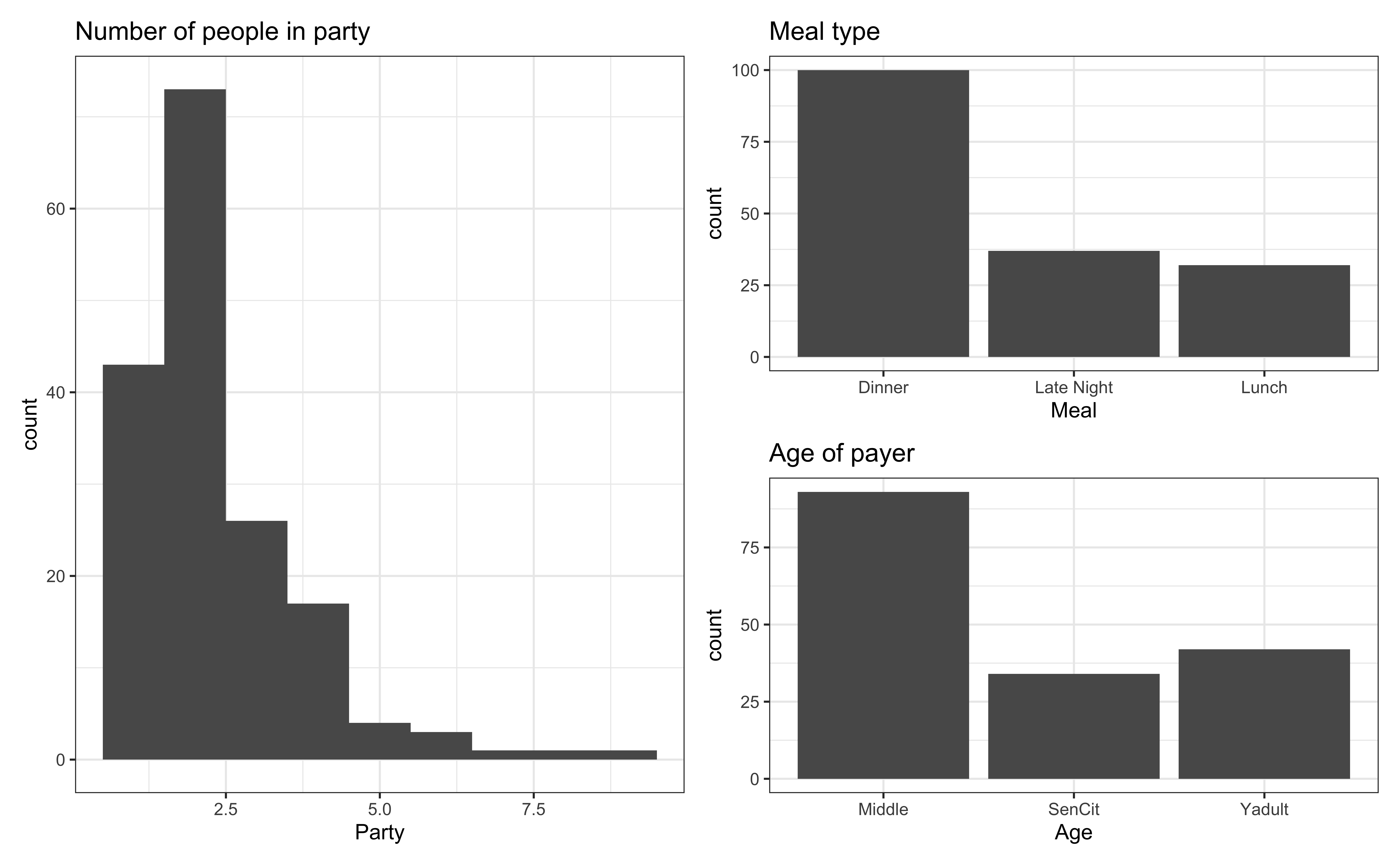

Predictors

Relevel categorical predictors

tips <- tips |>
  mutate(
    Meal = fct_relevel(Meal, "Lunch", "Dinner", "Late Night"),
    Age  = fct_relevel(Age, "Yadult", "Middle", "SenCit")
  )

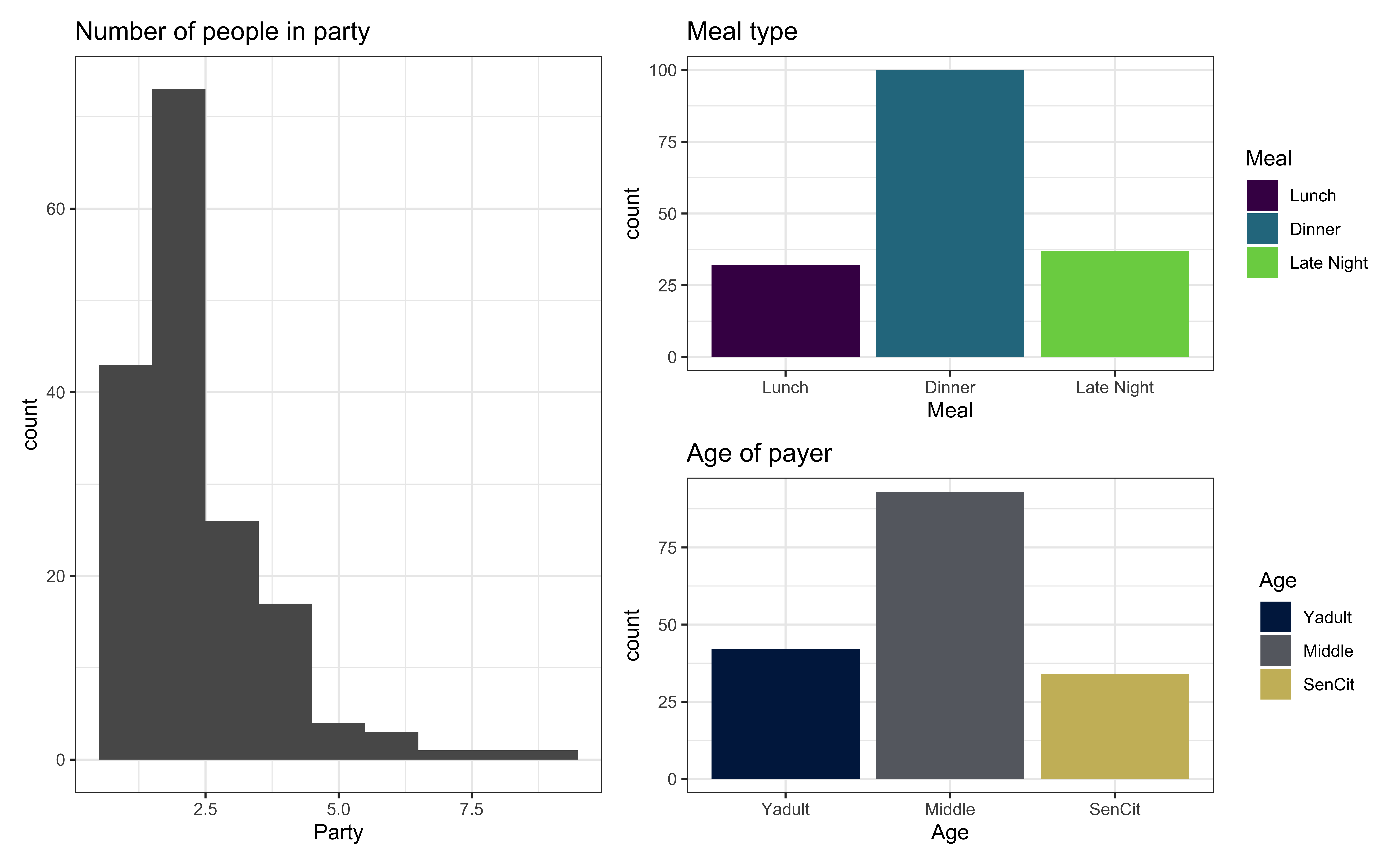

Predictors, again

Response vs. predictors

Fit and summarize model

tip_fit <- lm(Tip ~ Party + Age, data = tips)

tidy(tip_fit) |>
  kable(digits = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	-0.170	0.366	-0.465	0.643
Party	1.837	0.124	14.758	0.000
AgeMiddle	1.009	0.408	2.475	0.014
AgeSenCit	1.388	0.485	2.862	0.005

. . .

Overall, how well does this model help us understand variability n tips?

Two statistics

Root mean square error, RMSE: A measure of the average error (average difference between observed and predicted values of the outcome)
R-squared, \(R^2\) : Percentage of variability in the outcome explained by the regression model

What indicates a good model fit? Higher or lower RMSE? Higher or lower \(R^2\)?

RMSE

\[ RMSE = \sqrt{\frac{\sum_{i=1}^n(y_i - \hat{y}_i)^2}{n}} = \sqrt{\frac{\sum_{i=1}^ne_i^2}{n}} \]

. . .

Ranges between 0 (perfect predictor) and infinity (terrible predictor)
Same units as the response variable
The value of RMSE is more useful for comparing across models than evaluating a single model

Compute RMSE: Augmented data frame

Use the augment() function from the broom package to add columns for predicted values, residuals, and other observation-level model statistics

tip_aug <- augment(tip_fit)

. . .

# A tibble: 169 × 9
     Tip Party Age    .fitted .resid   .hat .sigma   .cooksd .std.resid
   <dbl> <dbl> <fct>    <dbl>  <dbl>  <dbl>  <dbl>     <dbl>      <dbl>
 1  2.99     1 Yadult    1.67  1.32  0.0247   2.04 0.00274        0.657
 2  2        1 Yadult    1.67  0.333 0.0247   2.05 0.000173       0.165
 3  5        1 SenCit    3.05  1.95  0.0371   2.04 0.00911        0.972
 4  4        3 Middle    6.35 -2.35  0.0111   2.04 0.00376       -1.16
 5 10.3      2 SenCit    4.89  5.45  0.0301   2.00 0.0571         2.71
 6  4.85     2 Middle    4.51  0.337 0.0126   2.05 0.0000881      0.166
 7  5        4 Yadult    7.18 -2.18  0.0471   2.04 0.0148        -1.09
 8  4        3 Middle    6.35 -2.35  0.0111   2.04 0.00376       -1.16
 9  5        2 Middle    4.51  0.487 0.0126   2.05 0.000184       0.240
10  1.58     1 SenCit    3.05 -1.47  0.0371   2.04 0.00524       -0.737
# ℹ 159 more rows

Finding RMSE in R

Use the rmse() function from the yardstick package (part of tidymodels)

rmse(tip_aug, truth = Tip, estimate = .fitted)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        2.02

. . .

Is the model a good fit for the data? What information do you need to make this determination?

Analysis of variance (ANOVA)

Analysis of Variance (ANOVA): Technique to partition variability in Y by the sources of variability

ANOVA

Main Idea: Decompose the total variation in the response into
- the variation that can be explained by the each of the variables in the model
- the variation that can’t be explained by the model (left in the residuals)
If the variation that can be explained by the variables in the model is greater than the variation in the residuals, this signals that the model might be “valuable” (at least one of the \(\beta\)’s not equal to 0)

Sum of Squares

\[ \begin{aligned} \color{#407E99}{SST} \hspace{5mm}&= &\color{#993399}{SSM} &\hspace{5mm} + &\color{#8BB174}{SSR} \\[10pt] \color{#407E99}{\sum_{i=1}^n(y_i - \bar{y})^2} \hspace{5mm}&= &\color{#993399}{\sum_{i = 1}^{n}(\hat{y}_i - \bar{y})^2} &\hspace{5mm}+ &\color{#8BB174}{\sum_{i = 1}^{n}(y_i - \hat{y}_i)^2} \end{aligned} \]

Click here to see why this equality holds.

ANOVA output in R¹

anova(tip_fit) |>
  tidy() |>
  kable(digits = 2)

term	df	sumsq	meansq	statistic	p.value
Party	1	1188.64	1188.64	285.71	0.00
Age	2	38.03	19.01	4.57	0.01
Residuals	165	686.44	4.16	NA	NA

ANOVA output, with totals

term	df	sumsq	meansq	statistic	p.value
Party	1	1188.64	1188.64	285.71	0
Age	2	38.03	19.01	4.57	0.01
Residuals	165	686.44	4.16
Total	168	1913.11

Sum of squares

term	df	sumsq
Party	1	1188.64
Age	2	38.03
Residuals	165	686.44
Total	168	1913.11

\(SST\): Sum of squares total, variability of the response, \(\sum_{i = 1}^n (y_i - \bar{y})^2\)
\(SSR\): Sum of squares residuals, variability of residuals, \(\sum_{i = 1}^n (y_i - \hat{y}_i)^2\)
\(SSM = SST - SSR\): Sum of squares model, variability explained by the model

Sum of squares: \(SST\)

term	df	sumsq
Party	1	1188.64
Age	2	38.03
Residuals	165	686.44
Total	168	1913.11

\(SST\): Sum of squares total, variability of the response

\(\sum_{i = 1}^n (y_i - \bar{y})^2\) = 1913.11

Sum of squares: \(SSR\)

term	df	sumsq
Party	1	1188.64
Age	2	38.03
Residuals	165	686.44
Total	168	1913.11

\(SSR\): Sum of squares residuals, variability of residuals

\(\sum_{i = 1}^n (y_i - \hat{y}_i)^2\) = 686.44

Sum of squares: \(SSM\)

term	df	sumsq
Party	1	1188.64
Age	2	38.03
Residuals	165	686.44
Total	168	1913.11

\(SSM\): Sum of squares model, Variability explained by the model

\(SST - SSR\) = 1226.67

\(R^2\)

The coefficient of determination \(R^2\) is the proportion of variation in the response, \(Y\), that is explained by the regression model

. . .

\[ R^2 = \frac{SSM}{SST} = 1 - \frac{SSR}{SST} = 1 - \frac{686.44}{1913.11} = 0.641 \]

. . .

What is the range of \(R^2\)? Does \(R^2\) have units?

Interpreting \(R^2\)

glance(tip_fit)$r.squared

[1] 0.6411891

. . .

Select the best interpretation for \(R^2\) .

Party and age correctly predicts 64.12% of tips.
64.12% of the variability in tips can be explained by party and age.
64.12% of the variability in party and age can be explained by tips.
64.12% of the time tips can be predicted by party and age.

Recap

Introduced interaction terms
Introduced ANOVA and sum of squares
Introduced \(R^2\) and RMSE

Next class

Model comparison

Footnotes

Click here for explanation about the way R calculates sum of squares for each variable.↩︎

Announcements

Office hours poll

Topics

Computational setup

Recap: Multiple linear regression

Data: Palmer penguins

Variables

Response vs. predictors

Model fit

Interpreting \(\hat{\beta}_j\)

Indicator variables

Centering

Standardizing

Interaction terms

Interaction terms

Bill length versus species

Interaction term in model

Interaction terms in the model

Interpreting interaction terms

Summary

Model evaluation

Data: Restaurant tips

Variables

Response: Tip

Predictors

Relevel categorical predictors

Predictors, again

Response vs. predictors

Fit and summarize model

Two statistics

RMSE

Compute RMSE: Augmented data frame

Finding RMSE in R

Analysis of variance (ANOVA)

Analysis of variance (ANOVA)

ANOVA

Sum of Squares

ANOVA output in R1

ANOVA output, with totals

Sum of squares

Sum of squares: \(SST\)

Sum of squares: \(SSR\)

Sum of squares: \(SSM\)

\(R^2\)

Interpreting \(R^2\)

Recap

Next class

Footnotes

Response: `Tip`

ANOVA output in R¹
